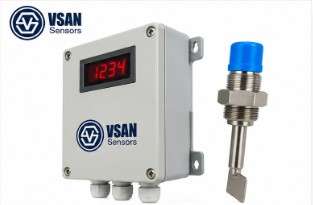

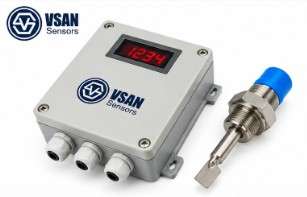

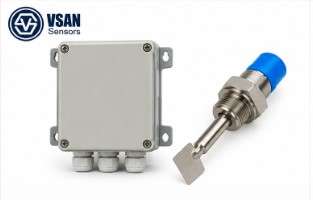

The VSAN Zero Speed Switch is a robust and highly reliable speed monitoring device designed to detect the complete stoppage, underspeed, or overspeed of rotating equipment in industrial applications. It continuously monitors the rotational speed of shafts, pulleys, conveyors, bucket elevators, rotary feeders, crushers, mixers, and other rotating machinery, providing immediate alarm or shutdown signals whenever the equipment speed deviates from the preset operating limits.
In modern industrial plants, unexpected equipment stoppage or speed reduction can result in production loss, equipment damage, material spillage, and costly downtime. The VSAN Zero Speed Switch is specifically engineered to prevent such failures by continuously monitoring machine speed and initiating protective actions before severe damage occurs.
The switch operates by sensing the rotational movement of a shaft or rotating component using a non-contact proximity sensor or magnetic pickup. The electronic controller continuously compares the detected pulse frequency with the user-defined set speed. If the equipment stops rotating or the speed falls below the preset threshold, the switch automatically activates an output relay to generate an alarm, stop the conveyor system, or shut down connected equipment.
Manufactured using heavy-duty industrial-grade materials, the VSAN Zero Speed Switch is designed to withstand harsh operating conditions including dust, vibration, moisture, and extreme temperatures. The rugged enclosure provides reliable protection against environmental conditions, making it suitable for both indoor and outdoor installations.
The VSAN Zero Speed Switch features adjustable speed settings, programmable time delay, LED status indication, and high-performance relay outputs for easy integration with industrial automation systems. The unit supports Relay Output, NPN/PNP Output (Model Dependent), and optional 4–20 mA or RS485 Modbus RTU communication, allowing seamless connectivity with PLC, DCS, SCADA, and conveyor monitoring systems.
Designed for easy installation and minimal maintenance, the switch offers high reliability, long service life, and dependable performance in continuous-duty industrial applications. It is widely used in Material Handling Systems, Mining, Cement Plants, Power Plants, Steel Industries, Bulk Material Conveying, Food Processing, Paper & Pulp Mills, Chemical Industries, Ports, and Industrial Automation Systems, where reliable speed monitoring is essential for protecting critical rotating equipment.
The VSAN Zero Speed Switch provides an efficient and cost-effective solution for machine protection, helping industries improve equipment reliability, reduce maintenance costs, and enhance overall plant safety.
The VSAN Zero Speed Switch operates on the Pulse Frequency Monitoring Principle.
A non-contact proximity sensor or magnetic pickup is installed near a rotating shaft, pulley, sprocket, or coupling. As the shaft rotates, the sensor detects each passing target or gear tooth and generates electrical pulses proportional to the rotational speed.
The electronic controller continuously counts these pulses and calculates the actual rotational speed of the equipment. The measured speed is then compared with the user-defined minimum operating speed.
If the shaft stops rotating completely or the speed drops below the preset limit for a specified time delay, the controller energizes or de-energizes the output relay, triggering an alarm or automatically shutting down the connected machinery.
Once the equipment resumes normal operation, the switch automatically resets and returns to its normal monitoring mode.
This continuous monitoring ensures early detection of belt slippage, conveyor stoppage, mechanical failure, and motor breakdown, preventing equipment damage and minimizing production downtime.
The VSAN Zero Speed Switch is widely used for monitoring rotating equipment and protecting machinery from unexpected stoppage or underspeed conditions.
