Product Overview

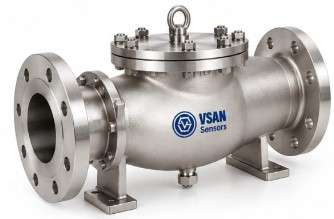

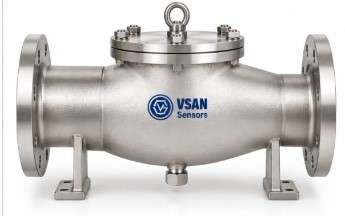

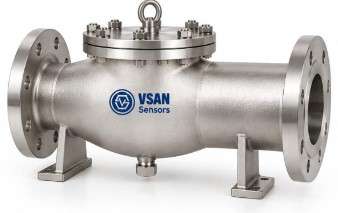

The VSAN Suction Diffuser is a compact and highly efficient pipeline component designed to combine the functions of a suction strainer, flow straightener, and pipe reducer into a single unit. Installed directly at the suction side of pumps, the Suction Diffuser protects the pump from debris, improves flow conditions, reduces turbulence, and enhances overall pump performance and service life.

Conventional pump installations often require separate strainers, reducers, and straight pipe lengths, resulting in increased space requirements, higher installation costs, and additional pressure losses. The VSAN Suction Diffuser eliminates these requirements by integrating all essential functions into one compact assembly, making it an ideal solution for space-constrained mechanical rooms and industrial pumping systems.

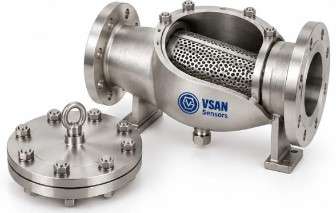

Manufactured from high-quality Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel (SS304, SS316), and other corrosion-resistant materials, the VSAN Suction Diffuser is designed for long-term operation under demanding industrial conditions. The stainless steel perforated screen effectively removes rust, scale, welding slag, and other solid particles from the incoming liquid, while the internal diffuser vanes straighten the flow and ensure uniform velocity distribution at the pump suction.

The VSAN Suction Diffuser is available with flanged connections in accordance with ANSI, ASME, DIN, BS, and IS standards and is suitable for pressure ratings such as PN10, PN16, PN25, and ANSI Class 150. The removable screen and blow-off connection allow quick cleaning and easy maintenance without disturbing the piping arrangement.

Widely used in HVAC systems, chilled water plants, cooling water systems, booster pumping stations, water treatment plants, industrial utilities, marine systems, and process industries, the VSAN Suction Diffuser provides reliable pump protection, reduced maintenance, and improved hydraulic performance.
