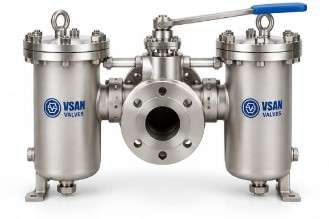

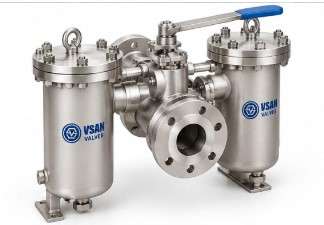

The VSAN Duplex Strainer is a high-performance continuous filtration system designed to remove solid contaminants from liquid process lines without interrupting fluid flow during maintenance. Unlike conventional strainers, the Duplex Strainer consists of two separate basket strainer chambers connected by a changeover valve mechanism, allowing one chamber to remain in operation while the other is cleaned or serviced. This unique design ensures uninterrupted process operation, making it ideal for critical industrial applications where downtime is unacceptable.
Engineered for continuous-duty service, the VSAN Duplex Strainer effectively removes rust, scale, welding slag, sand, dirt, and other suspended solids that may damage pumps, control valves, flow meters, heat exchangers, compressors, and other downstream equipment. The large stainless steel filter baskets provide high dirt-holding capacity, low pressure drop, and extended service intervals, resulting in improved operational efficiency and reduced maintenance costs.
Manufactured from premium-quality Cast Iron, Cast Steel, Carbon Steel, Stainless Steel (SS304, SS316, SS316L), Duplex Stainless Steel, and other corrosion-resistant alloys, the VSAN Duplex Strainer is suitable for handling water, chemicals, oils, fuels, solvents, cooling water, seawater, and other industrial process fluids. The robust construction ensures reliable performance under demanding operating conditions.
The VSAN Duplex Strainer is available with flanged, threaded, socket weld, and butt weld end connections in accordance with ANSI, ASME, DIN, BS, API, and IS standards. It is offered in various pressure classes including PN10, PN16, PN25, PN40, ANSI Class 150, 300, and 600 to suit diverse industrial applications.
Designed for maximum reliability, easy maintenance, and uninterrupted filtration, the VSAN Duplex Strainer is widely used in Water Treatment Plants, Chemical Processing, Petrochemical Industries, Oil & Gas, Marine, Power Plants, Food & Beverage, Pharmaceutical Industries, Steel Plants, Paper & Pulp Industries, HVAC Systems, and other continuous process industries.
The VSAN Duplex Strainer operates on the principle of continuous mechanical filtration using two independent basket chambers connected through a changeover valve. During normal operation, the process fluid flows through one basket chamber where solid particles are retained by the stainless steel filter basket while clean fluid passes downstream.

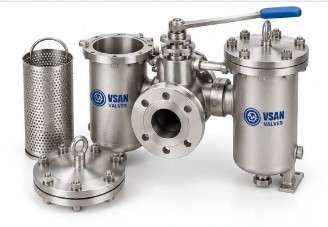

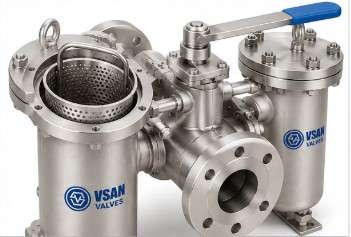

When the operating basket becomes clogged and the differential pressure increases, the changeover valve is operated to divert the flow to the second clean basket chamber. This allows the first basket to be isolated, opened, cleaned, and reinstalled without shutting down the pipeline or interrupting the process.
Once maintenance is completed, the cleaned basket remains on standby until the second basket requires cleaning. This alternating operation provides continuous filtration, minimizes process downtime, and ensures reliable protection of downstream equipment.
